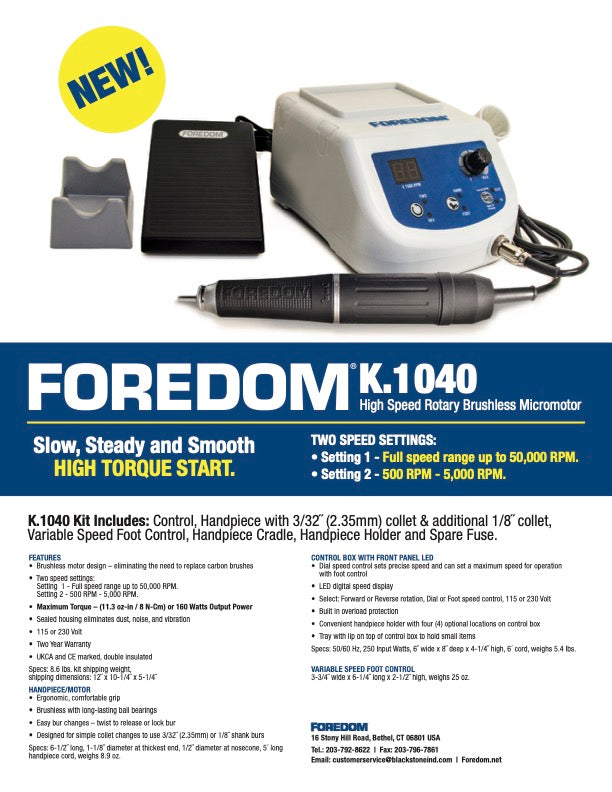

High Speed Rotary Brushless Micromotor, 50K RPM, Foredom K.1040

K.1040 High Speed Rotary Brushless Micromotor

Slow, Steady and Smooth! High Torque Start.

Brushless motor design – eliminating the need to replace carbon brushes

Two speed settings:

• Setting  1 – Full speed range up to 50,000 RPM.
• Setting 2 – 500 RPM – 5,000 RPM.

• Maximum Torque – (11.3 oz-in / 8 N-Cm) or 160 Watts Output Power
• Sealed housing eliminates dust, noise, and vibration
• 115 or 230 Volt
• Two Year Warranty
• UKCA and CE marked, double insulated
• 8.6 lbs. kit shipping weight
• 12˝ x 10-1/4˝ x 5-1/4" shipping dimensions

Handpiece/Motor

• Ergonomic, comfortable grip
• Brushless with long-lasting ball bearings
• Easy bur changes – twist to release or lock bur
• Designed for simple collet changes to use 3/32˝ (2.35mm) or 1/8˝ shank burs
• Specs: 6-1/2" long
• 1-1/8"diameter at thickest end
• 1/2" diameter at nosecone
• 5´ long handpiece cord, weighs 8.9 oz.

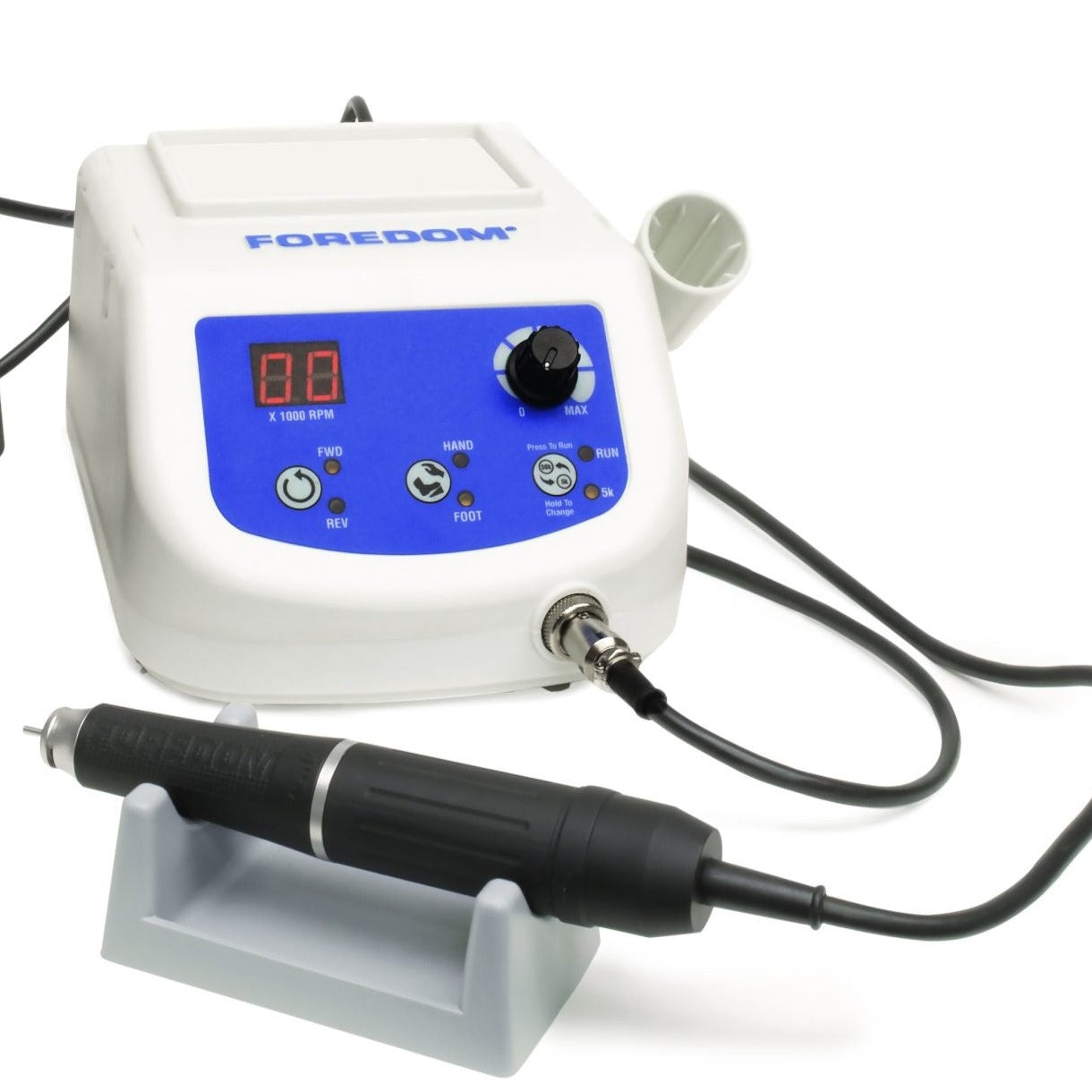

Control Box with Front Panel LED

• Dial speed control sets precise speed and can set a maximum speed for operation with foot control
• LED digital speed display
• Select: Forward or Reverse rotation, Dial or Foot speed control, 115 or 230 Volt
• Built in overload protection
• Convenient handpiece holder with four (4) optional locations on control box
• Tray with lip on top of control box to hold small items
• Specs: 50/60 Hz
• 250 Input Watts
• 6˝ wide x 8˝ deep x 4-1/4˝ high
• 6´ cord
• Weighs 5.4 lbs.

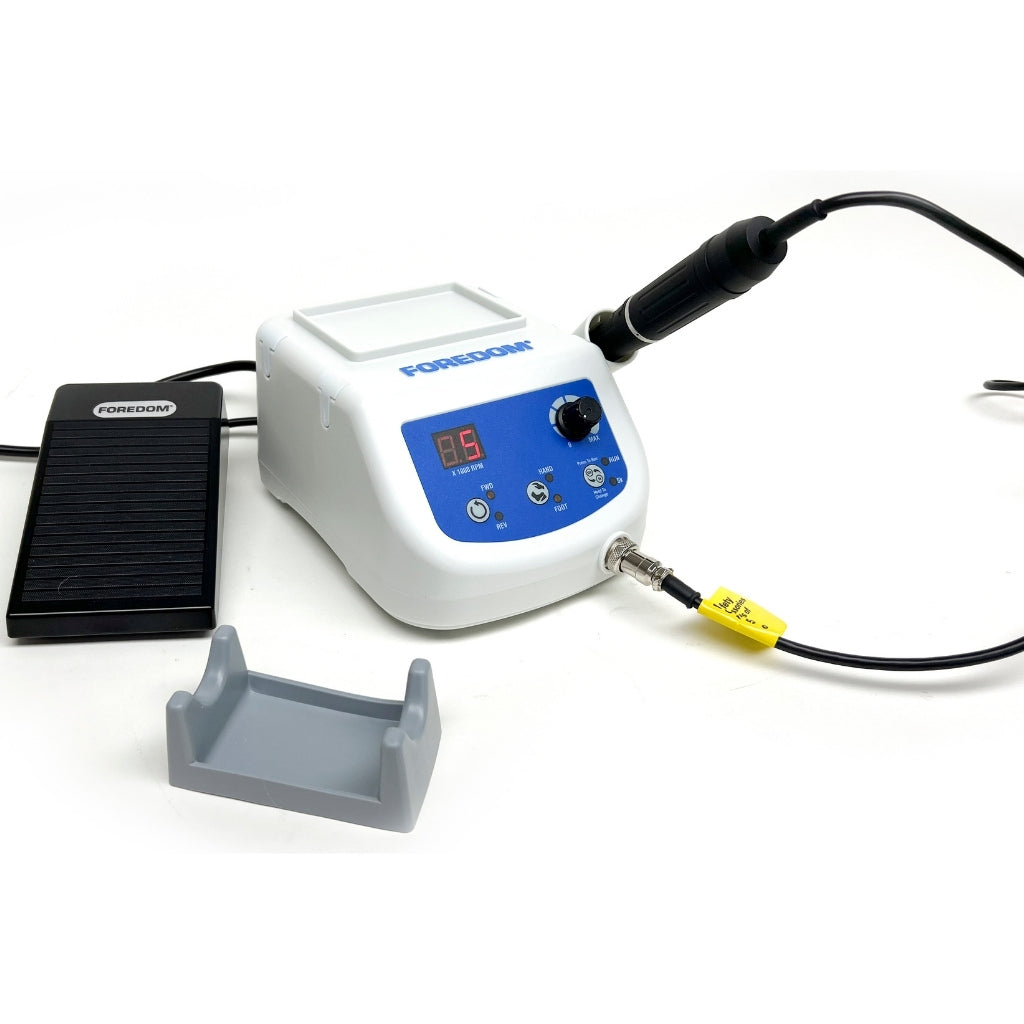

Variable Speed Foot Control

• 3-3/4˝ wide x 6-1/4˝ long x 2-1/2˝ high
• weighs 25 oz.
