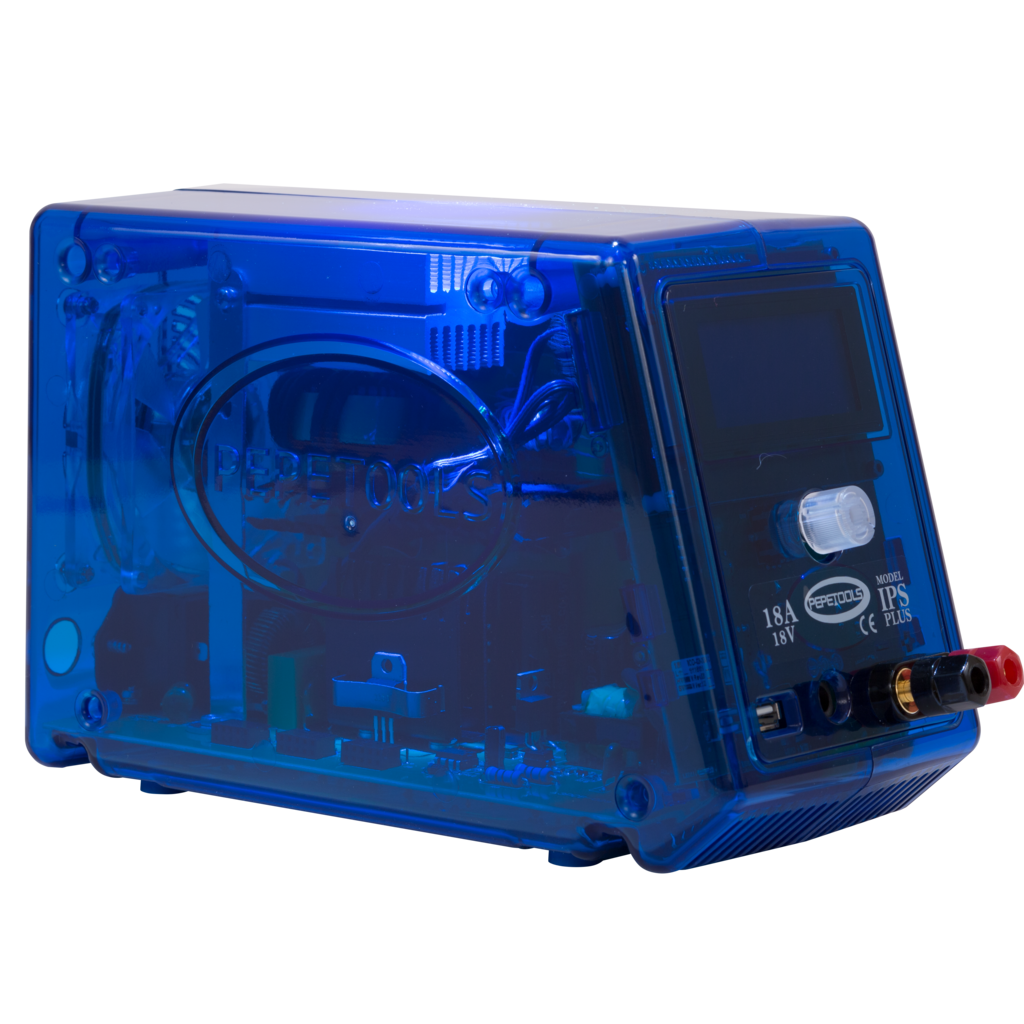

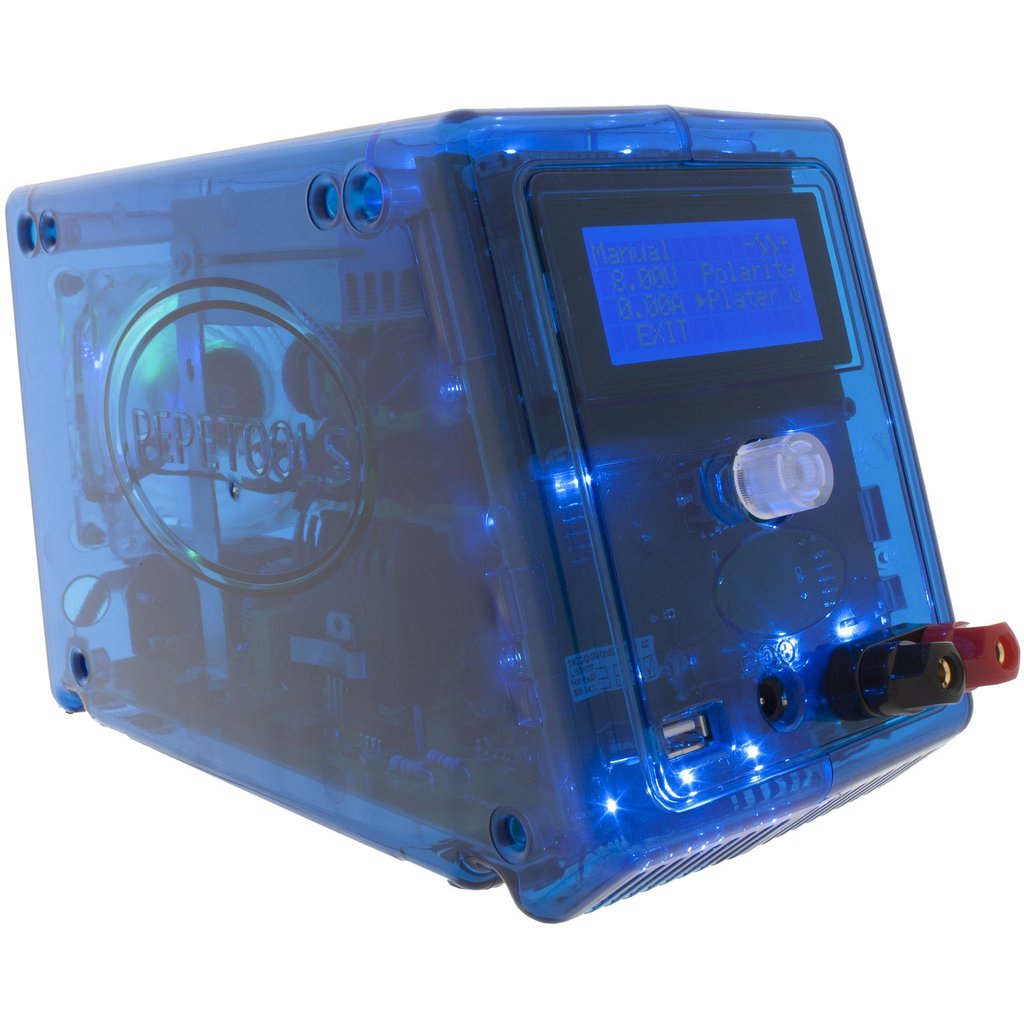

Intelligent Plating System - Programmable Rectifiers by Pepetools

Pepetools first introduced a leading line of plating equipment nearly 20 years ago. Every product cycle in this line trumps the previous version by setting a new milestone. This plating system is one of a kind, "CE" certified and  Patent Pending internal architecture designed and engineered by Pepetools in the USA!

This product is also available fully calibrated with a certificate - if you would like calibration services please contact us for more information.

IPS Intelligent Plating System is available in the following configurations;

• 10A/12V
• 18A/18V
• 25A/12V

Each amperage/voltage configuration is available with with the following features;

• IPS - LITE
  • Fully Digital Display
  • One Button Reverse Polarity
  • Dual Voltage 110/220V
  • Auto Short Protection

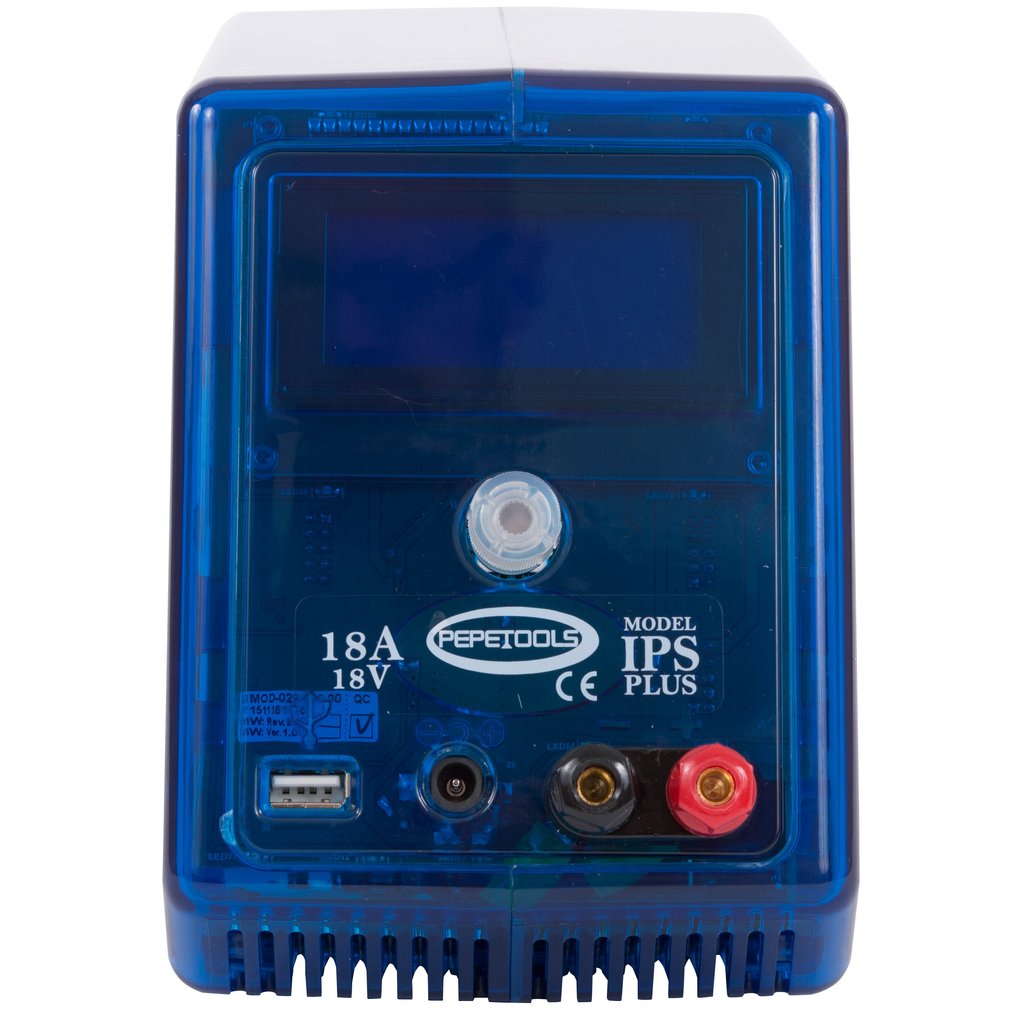

• IPS - PLUS
  • All of the features of the IPS - LITE
  • Fully programmable features such as
    • Plating voltage and amperage
    • Time to plate (from 1 second to 9 hours and 59 minutes)
    • Reverse polarity time
    • Integrated Amp Hour counter
    • Storage space for 5 individual programs
    • Each program can store parameters such as;
      • Plating Time
      • Reverse Polarity Time
      • Current Voltage
      • Current Amperage
      • Start Delay
    • Sequential Programming
      • Set each program (1-5) in order, or any order to run sequentially. Great for large scale operations.

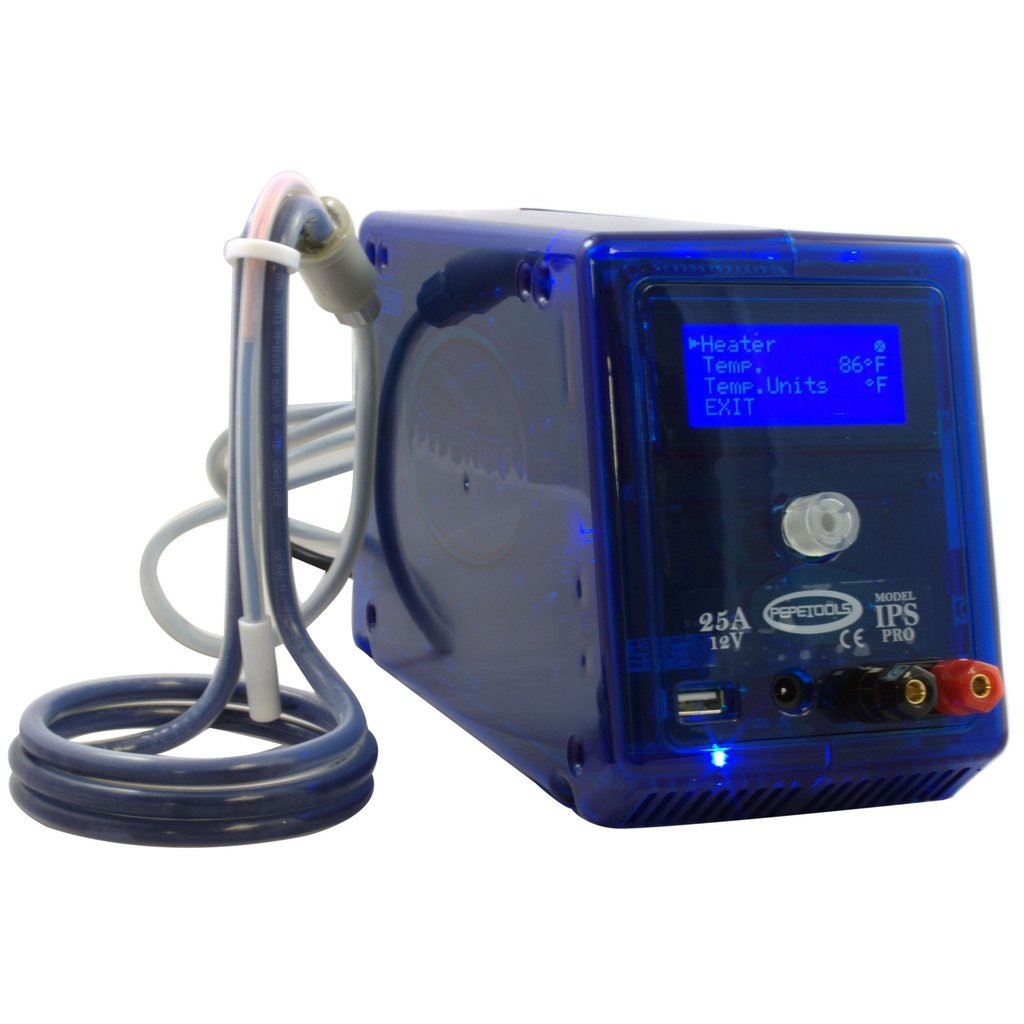

• IPS - PRO
  • Combines the features of the IPS - LITE & IPS - PLUS
  • Solution Coil Heater that fits into a 1000ML Beaker
  • Fully programmable heat in either degrees Fahrenheit or Celsius
  • Accurate up to +/- 1 degree C/F
  • All in one system that is perfect for rhodium and all other types of plating

Check out the PDF on a customers results during the Copper Via Fill Process
