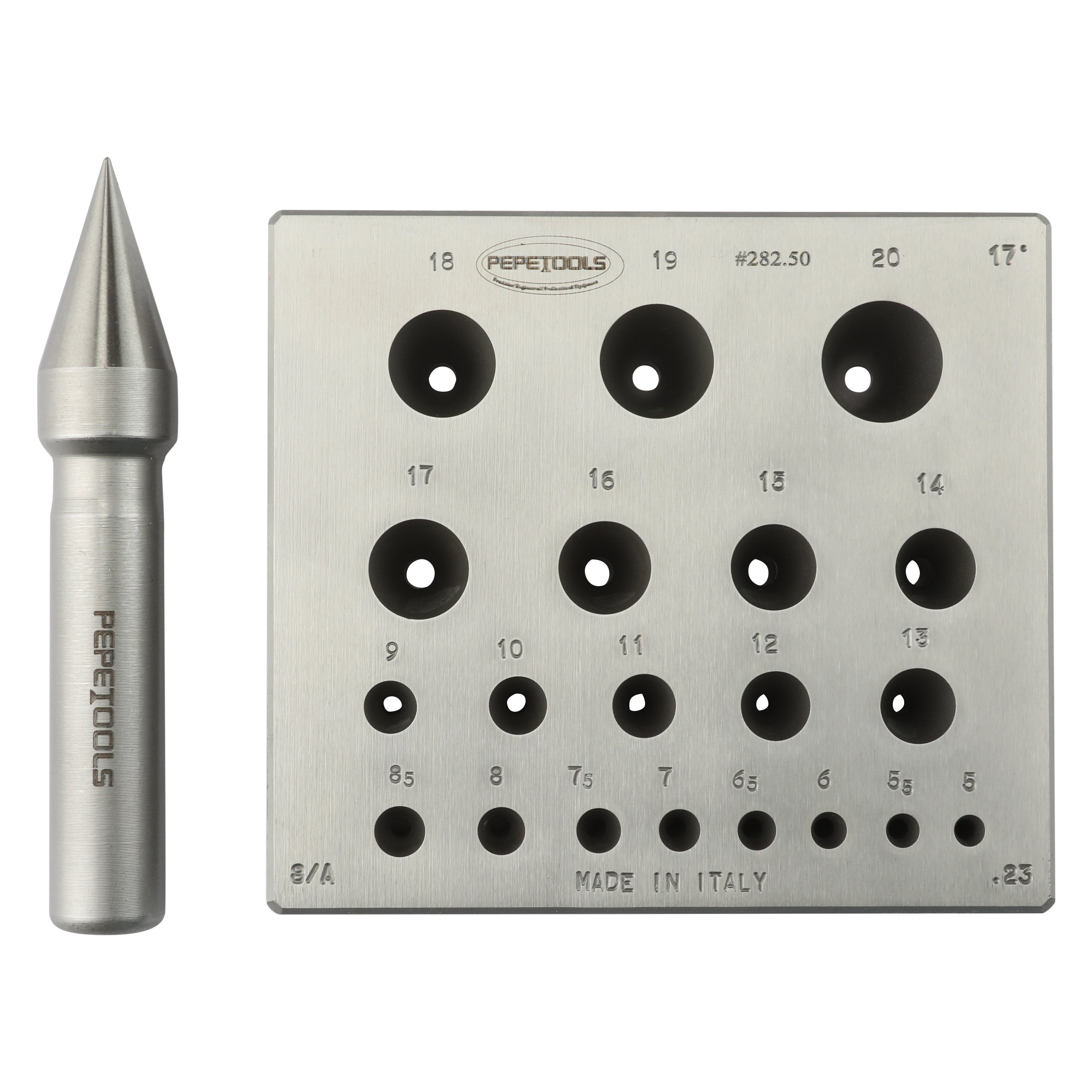

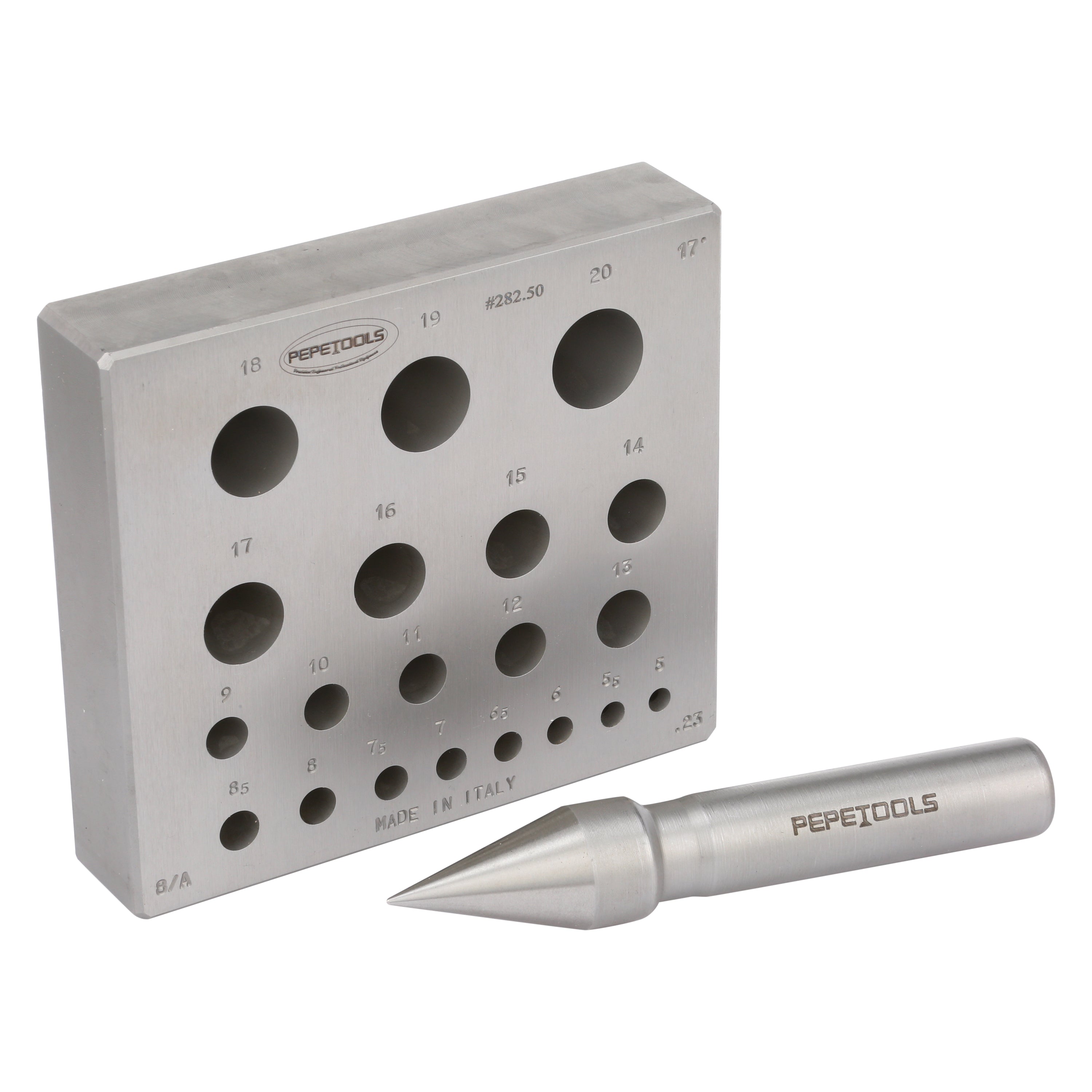

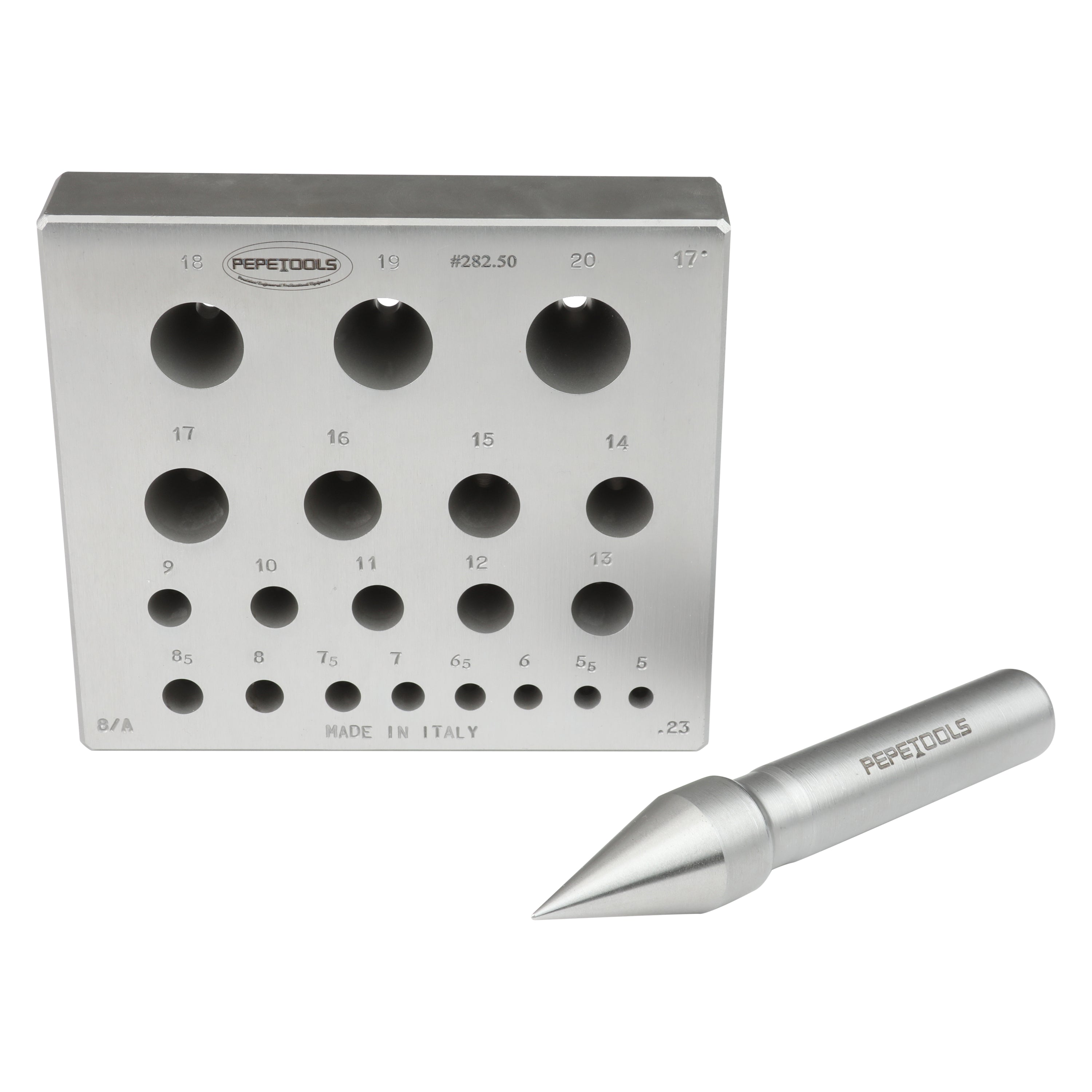

Round Bezel Forming Block, 20 holes, 17° Taper, 5mm - 20mm Diameter

Introducing our top-of-the-line Standard Bezel Block Set, expertly machined with an Electronic Discharge Wire (EDM) for a flawless finish. This premium bezel block is crafted from high-quality hardened steel, ensuring durability and longevity in even the most rigorous jewelry crafting environments.

The block measures 130mm in width, 120mm in height, and 29mm in thickness. It is built to handle a maximum thickness of 20 gauge, accommodating a wide range of materials for your unique jewelry creations. Additionally, the block has been surface ground to achieve a perfectly flat finish, adding to its overall precision and reliability.

The set comes with a dedicated punch that measures 135mm in length with a comfortable 20mm diameter handle. Its cone measures 40mm in length and features a 17° taper, mirroring the taper of the bezel block holes for optimal compatibility and function.

Our bezel block contains 20 meticulously cut holes, ranging from 5mm to 20mm in diameter, with each one exhibiting a consistent 17° taper. The diameters include 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, and 20mm, accommodating a diverse array of bezel sizes.

Designed with jewelry crafters in mind, this bezel block set enables you to create perfect bezels and prong settings from the smallest round size of 5mm to the largest of 20mm. The set is complete with a 17-degree angled punch that has been precision machined to match each bezel size, ensuring a perfect fit every time.

Our Standard Bezel Block Set is more than just a tool; it's a means to unleash your creative potential. Craft exquisite pieces with precision, efficiency, and confidence, thanks to the perfect combination of expert engineering and high-grade materials in this bezel forming punch set.
