Alex Boyd jewelry artist

Ball Bearing Spinner Ring with Alex Boyd

$760.00

Class is held May 8th - 10th, 2026, 10am - 5pm each day (our booking system only reflects the start day)

This class is all about incorporating a ball bearing underneath a cabochon to make a spinning ring. We’ll fabricate a deep bezel with room to hide the bearing, a ring with a tube that holds the bearing, then carefully attach the two elements together so that they’re secure but still able to spin freely. Along the way, I’ll cover a bunch of fabrication tips and tricks applicable to many different projects.

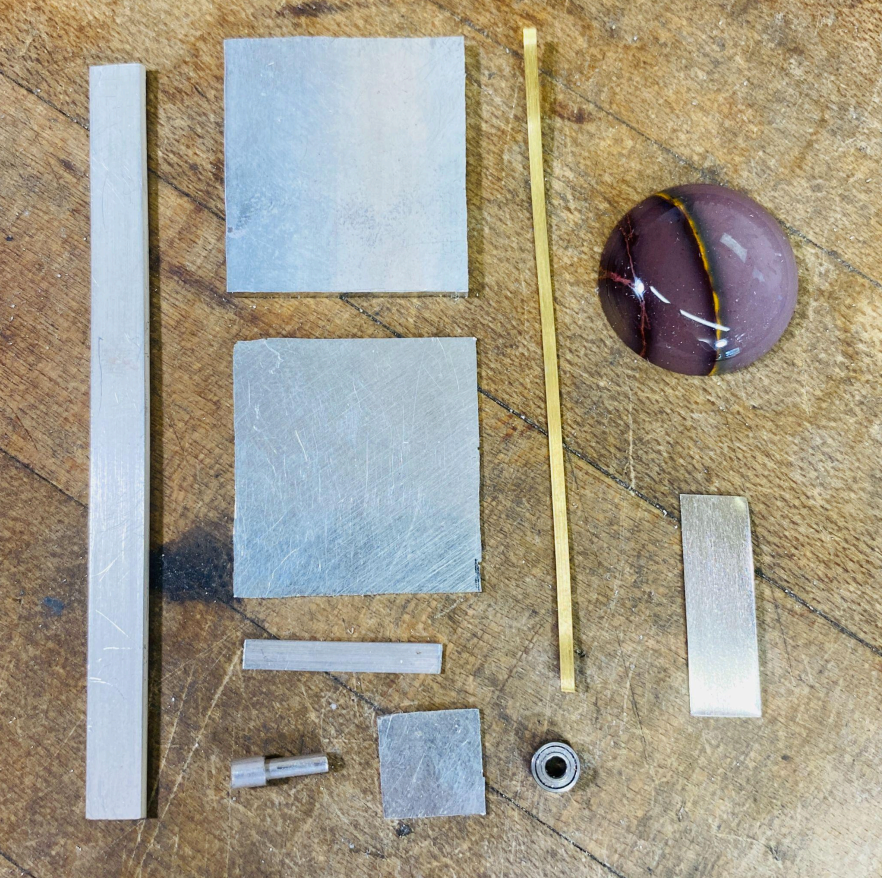

Materials:

  • Cabochon
  • 26 gauge bezel for cabochon (either 22k gold or fine silver)
  • 12 gauge .925 sheet (large enough for bezel backplate)
  • 22 gauge .925 sheet (same size as 12 gauge)
  • 22 gauge .925 sheet 1cm x 1cm
  • 14 gauge .925 strip 6mm x 8cm
  • 26 gauge .925 strip 3mm x 3cm
  • .925 tube 2mm outer diameter
  • .925 tube 2mm inner diameter
  • Hard silver solder
  • Ball bearing 2mm inner diameter 5mm outer diameter, 2.2mm thickness

Now let’s talk about fire! There are many ways to solder, and almost all of them can achieve great results. I like to pick solder using a titanium solder pick. I like Prips flux applied with a needle-tipped bottle. I prefer an oxy-propane or oxy-acetylene torch. That’s what you’ll see me use to make this project. That said, brushing paste flux on the piece with a paintbrush, then applying solder chips with tweezers, can make a piece that looks exactly the same. An acetylene/air torch is hot enough to do every technique I’ll demo. Butane won’t have enough heat though. I like Silquar solder board if I’ve got a torch that uses oxygen, but I find it too much of a heat sink for acetylene/air. In that case, I’ll use a hard Solderite board.
